PB 325

In the picture: PB 325 bed in beech with actuator cover plate. Accessories: cabinet Rubens 1 in beech.



The economy PB 325 bed stands out with its lightweight design while retaining all the functions and requirements of a modern longterm care bed. This model is ideal for use both at home and in nursing homes. Due to its special parameters, this bed is also ideally
suited for rehabilitation equipment rentals.

The PB 325 was especially designed for home care. Its simplicity and its well- balanced positive appearance make this model particularly captivating. It provides you with the entire comfort of a modern home care bed, such as an entry height of 40 cm and an electronically adjustable height of 80 cm, individually lockable casters, and continuous wooden side bars with plastic side bar end caps that prevent any risk of injury. Its modern 4-sectional lying surface with a width of 90 cm is individually adjustable with 2 independent motors on head and foot part. The length is 200 cm and can be extended by 20 cm if necessary. As on all ELBUR beds, the metal pieces on PB 325 are sealed using high quality polyester powder coating. Head and foot part fillings come in a homely beech pattern. Any possible electrical adjustment of the bed can be achieved using the easy to handle splash-proof manual control switch. Each single adjustment is individually lockable.

By using quick realize bolts and some preassembled components this care bed can be quickly and easily setup without any additional tools. The bed is delivered on a transport-rack on which it can later on also be stored.

Standard colors


C1 Dark beech



Product details

1. Save work load: 200 kg 4. Linak drive system
2. Handset with lockable functions 5. Knee section adjustment (option)

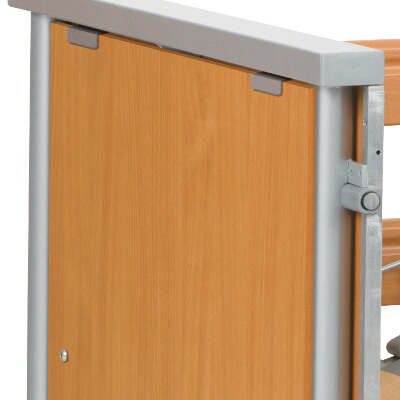

3. Brake castors 6. Main lifting actuator cover (option)

Options

mattress support material options • mattress support platform length choice • Trendelenburg position

Technical parameters

Save work load 200 kg
Maximum user weight 165 kg
Mattress support platform height adjustment from 40 to 80 cm
Back rest adjustment: 0 ÷ 70°
Lower leg rest adjustment: 0 ÷ 20°
External dimensions (length × width): 218 × 102 cm
Clearance under the bed: approx. 24 cm
Total weight: 87,0 kg
Castors: 100 mm with a brake



Functions of the rehabilitation bed

Download:

Instructions for use -in the "Download"

Technical specification.pdf

PB 325.pdf
