PB 536

In the photo: The bed PB 536 beech, with divided rails on one side of the bed. Accessories: Rubens 9, beech.



Modern design and multi-functionality are the dominant features of the PB 536 bed. Increased working load up to 200 kg, hidden castors and central brake facilitate the ease of work for the staff which are proven solutions used in many nursing homes and
increasing more often by individual clients within a home care setting.

Standard colors:

C1 Dark beech C2 Light beech



Non-standard colours​*:

C5 Maple C6 Acacia
C7 Light oak C8 Walnut

C153 Sonoma oak



Product details

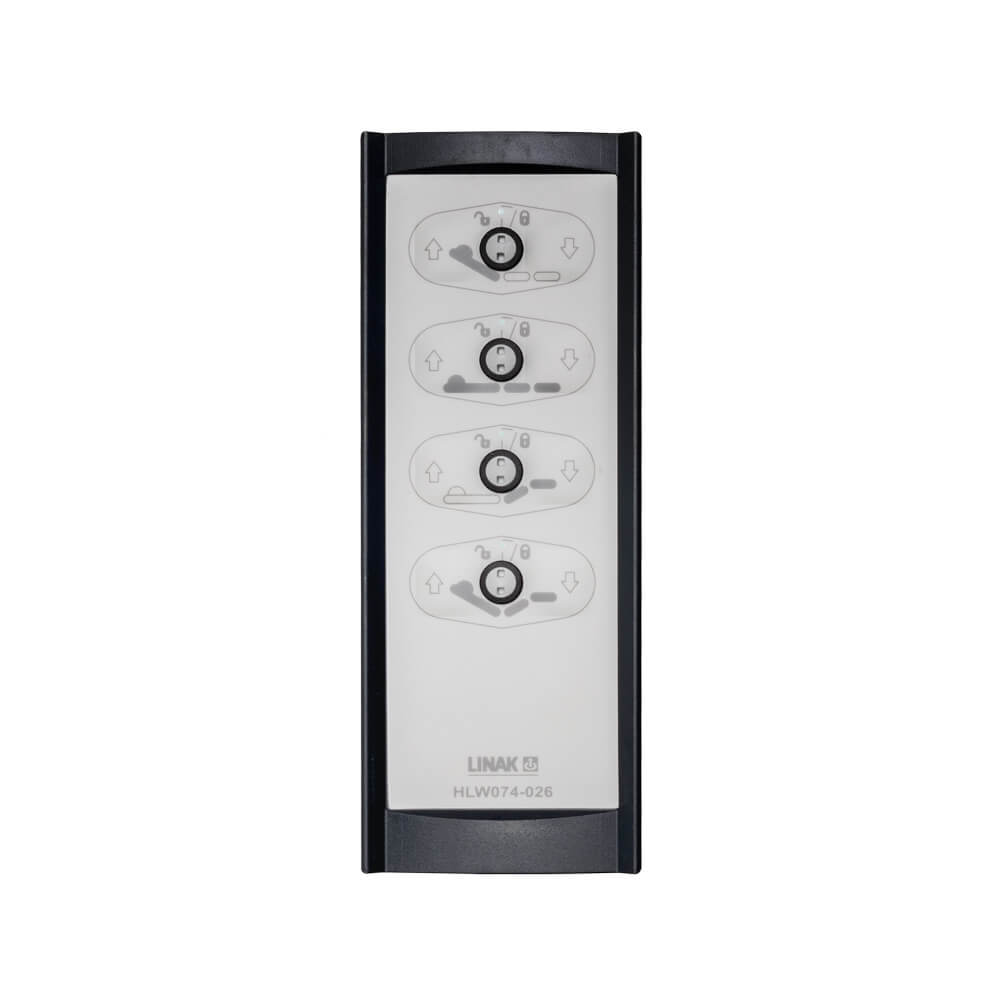

1. Maximum safe working load 200 kg 4. Handset with lockable functions

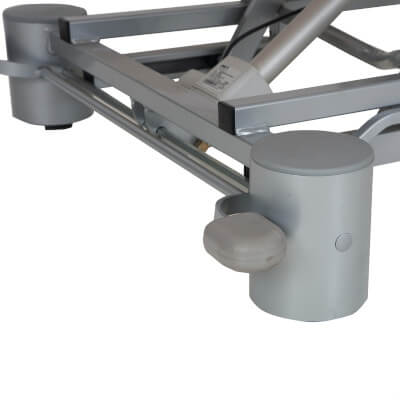

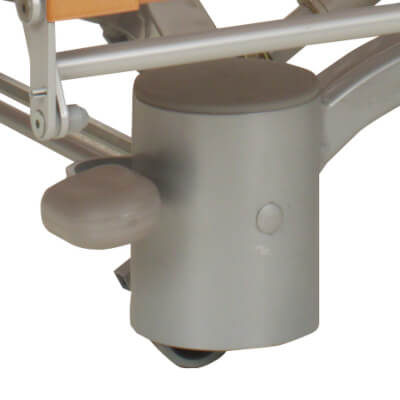

2. Central brakes 5. Hidden castors

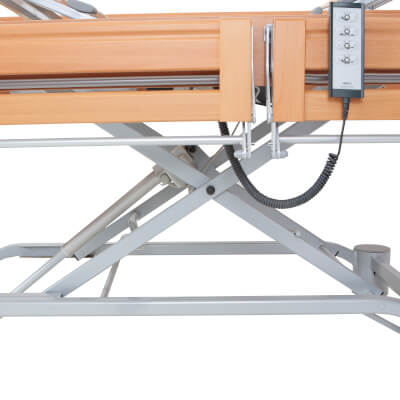

3. Latest technology of lifting the mattress support platform 6. Divided side rails (option)

Options

mattress support platform length choice • colour and mattress support material choices • divided side rails

Technical parameters

Save work load 200 kg
Maximum user weight 165 kg
Mattress support platform height adjustment from 39 to 80 cm
Back rest adjustment: 0 ÷ 70°
Lower leg rest adjustment: 0 ÷ 20°
External dimensions (length × width): 207 × 106 cm
Clearance under the bed: approx. 16 cm
Total weight: 131,2 kg
Hidden castors: 50 mm



Functions of the rehabilitation bed

Download:

Instructions for use -in the "Download"

Technical specification.pdf

PB 536.pdf
