PB 533DB

In the picture: PB 533 nut cover with two static mattress platforms PB 521.


The PB 533 DB cover with a static mattress platform is our proposal for a solution that enables the bed to be used by both partners while maintaining all its essential functions. This one-of-a-kind bed allows constant support and the presence of a carer / partner,
which is an important factor in convalescence and patient care.

Standard colors:

C1 Dark beech C2 Light beech


Non-standard colours​*:

C5 Maple C6 Acacia
Grande oak C8 Walnut
C153 Sonoma oak


Product details

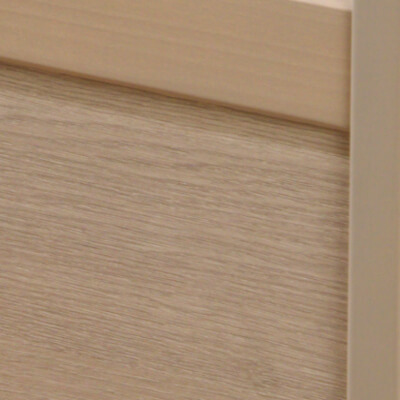

1. Nut decorative surrounds 4. Individual control of each mattress support platform

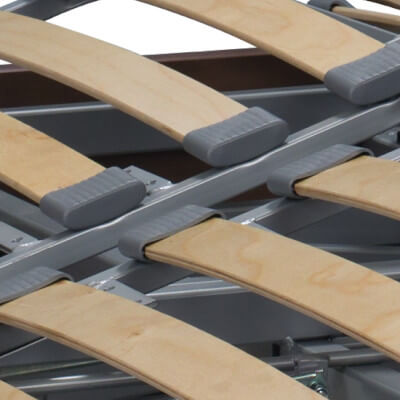

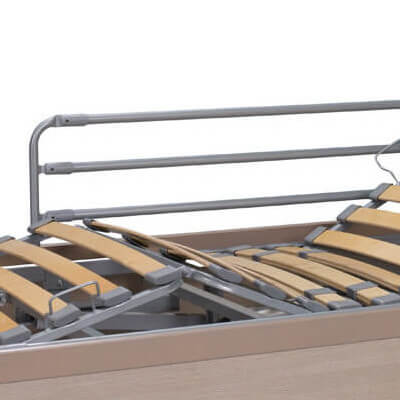

2. Option to add folding side rails 5. Double lifting system

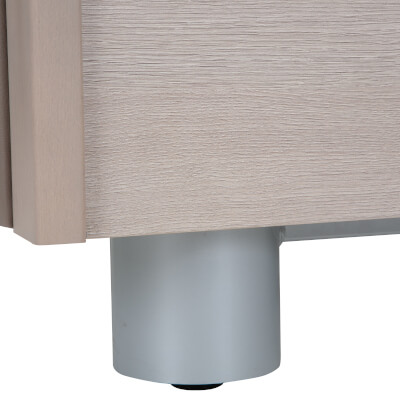

3. Various dimensions of mattress support platform 6. Round feet base (option)


extendable mattress support platform • colours choice • option to add hidden castors

Technical parameters

Save work load 330,0 kg
Maximum user weight 2 x 140 kg
Mattress support platform height adjustment from 39 to 80 cm
Back rest adjustment: 0 ÷ 70°
Lower leg rest adjustment: 0 ÷ 20°
External dimensions (length × width): 207 × 165 cm
Clearance under the bed: approx. 16 cm
Total weight: 189,7 kg
Adjustable foot: max 100 mm


Functions of the rehabilitation bed


Instructions for use -in the "Download"

Technical specification.pdf

PB 533DB.pdf
