PB 340

In the picture: PB 340 bed, dimensions 120×200cm, front beech. Accessories: table Rubens 9 beech.



A unique proposal among beds, designed for the comfort and safety of users with increased body weight. Reinforced structure, wider mattress support platform and heavy duty actuator allow this bed to be used by users weighing up to 215 kg. Due to its special
technical parameters, the PB 340 bed is specially designed for bariatric patients.

Standard colors


C1 Dark beech



Product details

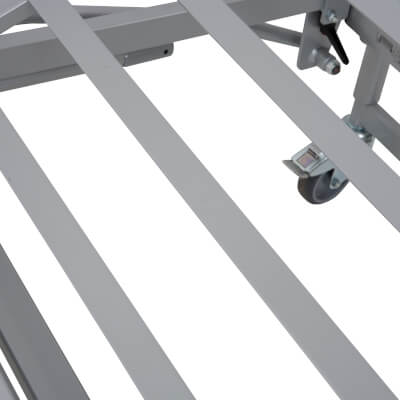

1. Mattress support platform width 100 and 120 cm 4. Sturdy, hygienic matteress support platform
2. Maximum safe working load 250 kg 5. Handset with lockable individual functions

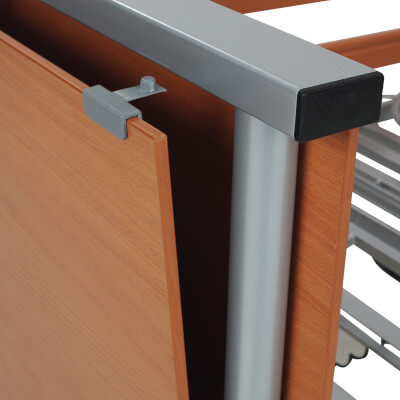

3. Latest actuator technology of bed lifting 6. Main lifting actuator cover (option)

Options

bed actuator cover board • extendable mattress support platform

Technical parameters

Save work load 250 kg
Maximum user weight 215 kg
Mattress support platform height adjustment from 30 to 80 cm
Back rest adjustment: 0 ÷ 70°

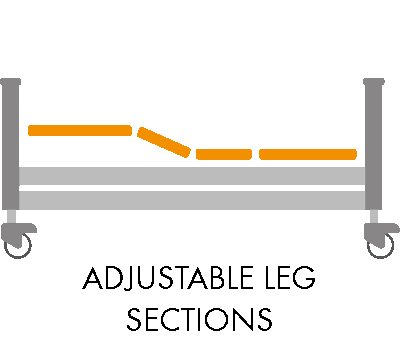

Lower leg rest adjustment: 0 ÷ 20°
External dimensions (length × width): 218 × 112 (132) cm
Clearance under the bed: approx. 19 cm
Total weight: 109,8 (123,5) kg
Castors: 100 mm with a brake



Functions of the rehabilitation bed

Download:

Instructions for use -in the "Download"

Technical specification.pdf

PB 340.pdf
